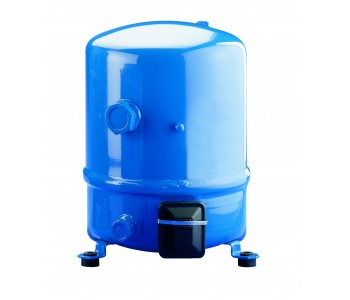

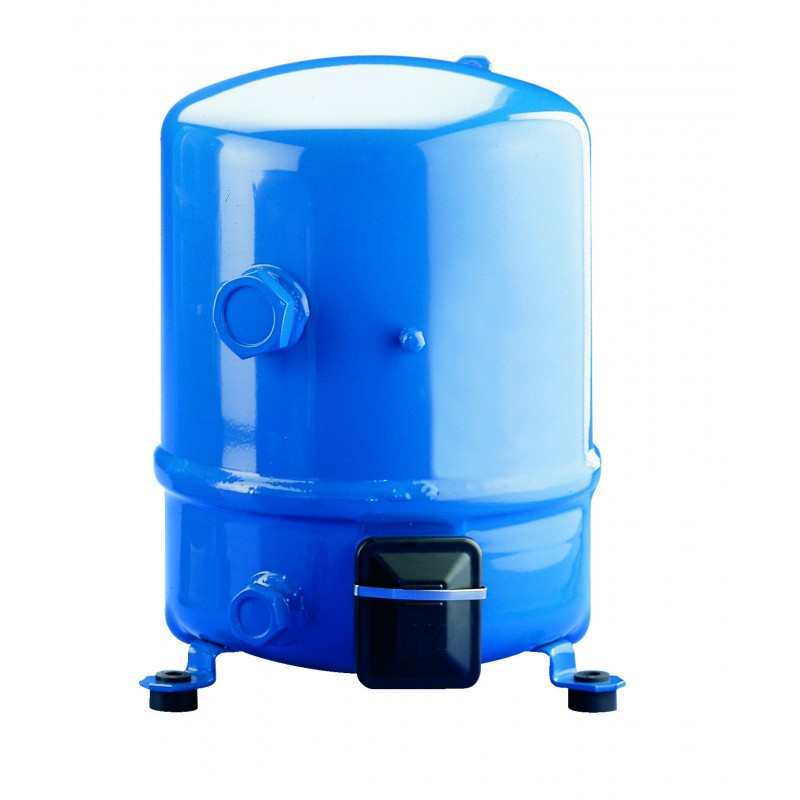

Danfoss MT64-6VI - Reciprocating compressor, MT64HM6BVE
Refrigerant: R22, Segment usage: Air conditioning; Refrigeration MT, Compressor power supply [V/Ph/Hz]: 230/3/50
Информация о продукте
| Gross weight | 41.5 kg |
| Net weight | 39 kg |
| EAN | 5702428661966 |
| Gross weight | 41.5 kg |
| Net weight | 39 kg |
| EAN | 5702428661966 |
| Approval standard | CE |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 230/3/50 |
| Configuration code | Single |
| Connection type | Rotolock |
| Cylinder | 2 |
| Description | MT064-6 |
| Diameter [mm] | 288 mm |
| Discharge connection height [mm] | 74 mm |
| Discharge connection mounting torque [Nm] | 90 Nm |
| Discharge connection pipe size [in] | 3/4 in |
| Discharge connection rotolock size [in] | 1 1/4 in |
| Discharge connection size [in] | 1 1/4 in |
| Discharge connection sleeve pipe size [in] | 3/4 in |
| Drawing number | 8502011e |
| Economizer | No |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 50 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | B |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 Nm |
| GP LP torque [Nm] | 15 Nm |
| High side max pressure (Ps) | 27.8 bar |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.6 L |
| High value of nominal voltage at 50Hz [V] | 230 V |
| High value of nominal voltage at 60Hz [V] | 0 V |
| High value of voltage range at 50Hz [V] | 253 V |
| High value of voltage range at 60Hz [V] | 0 V |
| IP protection class | IP54 (with cable gland) |
| Low side max pressure (Ps) | 18.4 bar |
| Low Side TS Max | 50 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 16.5 L |
| Low value of nominal voltage at 50Hz [V] | 230 V |
| Low value of nominal voltage at 60Hz [V] | 0 V |
| Low value of voltage range at 50Hz [V] | 207 V |
| Low value of voltage range at 60Hz [V] | 0 V |
| LRA | 124 A |
| MCC | 25 A |
| Model number | MT64HM6BVE |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 Nm |
| Nominal cooling capacity 60 kBTU/h | 64.85 kBtu/h |
| Nominal cooling capacity at 50Hz | 14.3 kW |
| Nominal cooling capacity at 60Hz | 19 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.8 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 Nm |
| Oil reference | 160P |
| Packaging height [mm] | 455 mm |
| Packaging length [mm] | 395 mm |
| Packaging weight [Kg] | 40 kg |
| Packaging width [mm] | 365 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Refrigerant | R22 |
| Refrigerant charge [kg] [Max] | 5 kg |
| Relief valve | 30 bar/8 bar |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 0 rpm |
| Segment usage | Air conditioning, Refrigeration MT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 265 mm |
| Suction connection mounting torque [Nm] | 110 Nm |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection rotolock size [in] | 1 3/4 in |
| Suction connection size [in] | 1 3/4 in |
| Suction connection sleeve pipe size [in] | 7/8 in |
| Swept volume [cm3] | 107.71 cm³ |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 413 mm |
| Type | MT |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.78 Ohm |
| Approval standard | CE |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 230/3/50 |
| Configuration code | Single |
| Connection type | Rotolock |
| Cylinder | 2 |
| Description | MT064-6 |
| Diameter [mm] | 288 mm |
| Discharge connection height [mm] | 74 mm |
| Discharge connection mounting torque [Nm] | 90 Nm |
| Discharge connection pipe size [in] | 3/4 in |
| Discharge connection rotolock size [in] | 1 1/4 in |
| Discharge connection size [in] | 1 1/4 in |
| Discharge connection sleeve pipe size [in] | 3/4 in |
| Drawing number | 8502011e |
| Economizer | No |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 50 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | B |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 Nm |
| GP LP torque [Nm] | 15 Nm |
| High side max pressure (Ps) | 27.8 bar |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.6 L |
| High value of nominal voltage at 50Hz [V] | 230 V |
| High value of nominal voltage at 60Hz [V] | 0 V |
| High value of voltage range at 50Hz [V] | 253 V |
| High value of voltage range at 60Hz [V] | 0 V |
| IP protection class | IP54 (with cable gland) |
| Low side max pressure (Ps) | 18.4 bar |
| Low Side TS Max | 50 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 16.5 L |
| Low value of nominal voltage at 50Hz [V] | 230 V |
| Low value of nominal voltage at 60Hz [V] | 0 V |
| Low value of voltage range at 50Hz [V] | 207 V |
| Low value of voltage range at 60Hz [V] | 0 V |
| LRA | 124 A |
| MCC | 25 A |
| Model number | MT64HM6BVE |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 Nm |
| Nominal cooling capacity 60 kBTU/h | 64.85 kBtu/h |
| Nominal cooling capacity at 50Hz | 14.3 kW |
| Nominal cooling capacity at 60Hz | 19 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.8 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 Nm |
| Oil reference | 160P |
| Packaging height [mm] | 455 mm |
| Packaging length [mm] | 395 mm |
| Packaging weight [Kg] | 40 kg |
| Packaging width [mm] | 365 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Refrigerant | R22 |
| Refrigerant charge [kg] [Max] | 5 kg |
| Relief valve | 30 bar/8 bar |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 0 rpm |
| Segment usage | Air conditioning, Refrigeration MT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 265 mm |
| Suction connection mounting torque [Nm] | 110 Nm |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection rotolock size [in] | 1 3/4 in |
| Suction connection size [in] | 1 3/4 in |
| Suction connection sleeve pipe size [in] | 7/8 in |
| Swept volume [cm3] | 107.71 cm³ |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 413 mm |
| Type | MT |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.78 Ohm |
