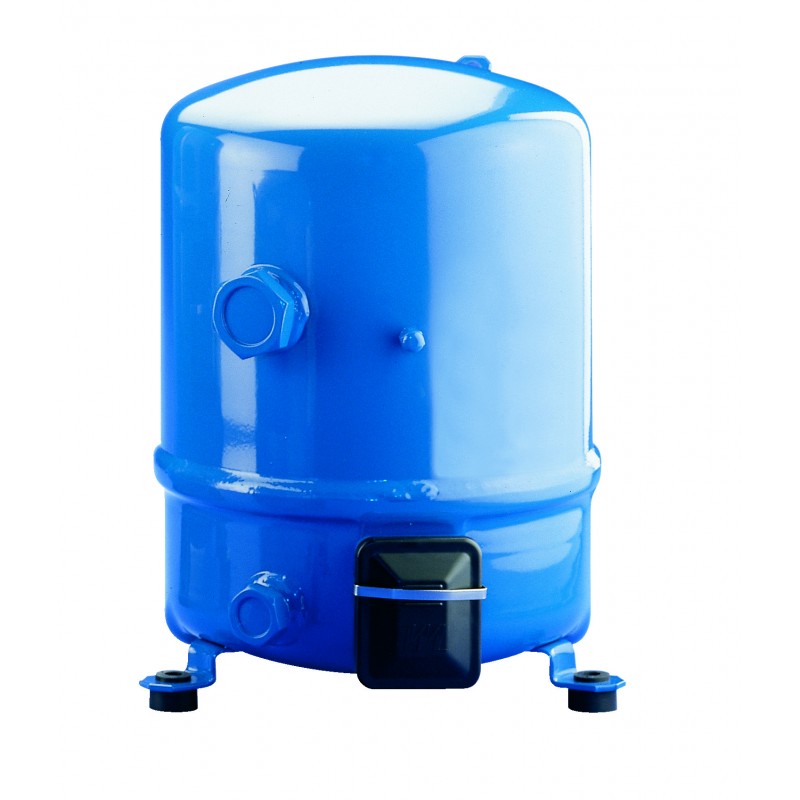

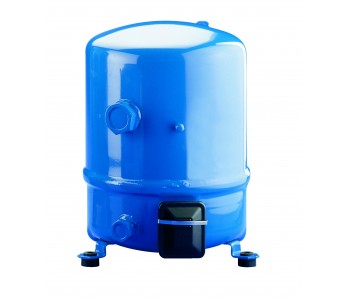

Danfoss MTZ50-1VI - Reciprocating compressor, MTZ50HK1BVE
Refrigerant: R134a; R404A; R407A; R407C; R407F; R448A; R449A; R452A; R513A, Segment usage: Air conditioning; Refrigeration MT, Compressor power supply [V/Ph/Hz]: 208-230/1/60
Информация о продукте
| Gross weight | 39.5 kg |
| Net weight | 37 kg |
| EAN | 5702428888110 |
| Gross weight | 39.5 kg |
| Net weight | 37 kg |
| EAN | 5702428888110 |
| Approval standard | CE, UL |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.83 Ohm |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 30 µF |
| Capacity of capacitor B | 135 µF |
| Capacity of capacitor C | 15 µF |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 208-230/1/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Cylinder | 2 |
| Description | MTZ050-1 |
| Diameter [mm] | 288 mm |
| Discharge connection height [mm] | 74 mm |
| Discharge connection mounting torque [Nm] | 90 Nm |
| Discharge connection pipe size [in] | 3/4 in |
| Discharge connection rotolock size [in] | 1 1/4 in |
| Discharge connection size [in] | 1 1/4 in |
| Discharge connection sleeve pipe size [in] | 3/4 in |
| Drawing number | 8502011e |
| Economizer | No |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | B |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 Nm |
| GP LP torque [Nm] | 15 Nm |
| High side max pressure (Ps) | 29.4 bar |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 253 V |
| IP protection class | IP54 (with cable gland) |
| Low side max pressure (Ps) | 22.6 bar |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| LRA | 114 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.38 Ohm |
| MCC | 36 A |
| Model number | MTZ50HK1BVE |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 Nm |
| Nominal cooling capacity at 50Hz | 6.2 kW |
| Nominal cooling capacity at 60Hz | 8.3 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.8 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 Nm |
| Oil reference | 175PZ |
| Packaging height [mm] | 455 mm |
| Packaging length [mm] | 395 mm |
| Packaging weight [Kg] | 39 kg |
| Packaging width [mm] | 365 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 1 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Refrigerant | R134a, R404A, R407C, R407A, R407F, R448A, R449A, R452A, R513A |
| Refrigerant charge [kg] [Max] | 5 kg |
| Relief valve | 30 bar/8 bar |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning, Refrigeration MT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 265 mm |
| Suction connection mounting torque [Nm] | 110 Nm |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection rotolock size [in] | 1 3/4 in |
| Suction connection size [in] | 1 3/4 in |
| Suction connection sleeve pipe size [in] | 7/8 in |
| Swept volume [cm3] | 85.64 cm³ |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 413 mm |
| Type | MTZ |
| Type designation | Compressor |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 330 V |
| Voltage of capacitor C [V] | 440 V |
| Approval standard | CE, UL |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.83 Ohm |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 30 µF |
| Capacity of capacitor B | 135 µF |
| Capacity of capacitor C | 15 µF |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 208-230/1/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Cylinder | 2 |
| Description | MTZ050-1 |
| Diameter [mm] | 288 mm |
| Discharge connection height [mm] | 74 mm |
| Discharge connection mounting torque [Nm] | 90 Nm |
| Discharge connection pipe size [in] | 3/4 in |
| Discharge connection rotolock size [in] | 1 1/4 in |
| Discharge connection size [in] | 1 1/4 in |
| Discharge connection sleeve pipe size [in] | 3/4 in |
| Drawing number | 8502011e |
| Economizer | No |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | B |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 Nm |
| GP LP torque [Nm] | 15 Nm |
| High side max pressure (Ps) | 29.4 bar |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 253 V |
| IP protection class | IP54 (with cable gland) |
| Low side max pressure (Ps) | 22.6 bar |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| LRA | 114 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.38 Ohm |
| MCC | 36 A |
| Model number | MTZ50HK1BVE |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 Nm |
| Nominal cooling capacity at 50Hz | 6.2 kW |
| Nominal cooling capacity at 60Hz | 8.3 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.8 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 Nm |
| Oil reference | 175PZ |
| Packaging height [mm] | 455 mm |
| Packaging length [mm] | 395 mm |
| Packaging weight [Kg] | 39 kg |
| Packaging width [mm] | 365 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 1 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Refrigerant | R134a, R404A, R407C, R407A, R407F, R448A, R449A, R452A, R513A |
| Refrigerant charge [kg] [Max] | 5 kg |
| Relief valve | 30 bar/8 bar |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning, Refrigeration MT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 265 mm |
| Suction connection mounting torque [Nm] | 110 Nm |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection rotolock size [in] | 1 3/4 in |
| Suction connection size [in] | 1 3/4 in |
| Suction connection sleeve pipe size [in] | 7/8 in |
| Swept volume [cm3] | 85.64 cm³ |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 413 mm |
| Type | MTZ |
| Type designation | Compressor |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 330 V |
| Voltage of capacitor C [V] | 440 V |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Основные характеристики
- Approval standard
- CEUL
- Auxiliary winding resistance (start winding) for single-phase co
- 1.83 Ohm
- Auxiliary winding resistance (start winding) for single-phase co
- 1.83 Ohm
- Brand technique
- Reciprocating compressor
- Capacity control
- Fixed speed
- Capacity of capacitor A
- 30 µF
- Capacity of capacitor B
- 135 µF
- Capacity of capacitor C
- 15 µF
- Colour
- Blue
- Compressor power supply [V/Ph/Hz]
- 208-230/1/60
- Configuration code
- Single
- Connection type
- Rotolock
- Cylinder
- 2
- Description
- MTZ050-1
- Diameter [mm]
- 288 mm
- Discharge connection height [mm]
- 74 mm
- Discharge connection mounting torque [Nm]
- 90 Nm
- Discharge connection pipe size [in]
- 3/4 in
- Discharge connection rotolock size [in]
- 1 1/4 in
- Discharge connection size [in]
- 1 1/4 in
- Discharge connection sleeve pipe size [in]
- 3/4 in
- Drawing number
- 8502011e
- EAN
- 5702428888110
- Economizer
- No
- Factory HP [bar]
- 25 bar
- Factory LP [bar]
- 25 bar
- Fitting remark
- (shipped with rotolock version only)
- Fitting sleeve
- ODF
- Fitting standard
- Rotolock
- Frequency [Hz]
- 60
- Gauge port HP
- None
- Gauge port LP
- Schrader
- Generation code
- B
- Glass mounting
- Threaded
- Glass torque [Nm]
- 50 Nm
- GP LP torque [Nm]
- 15 Nm
- Gross weight
- 39.5 kg
- High side max pressure (Ps)
- 29.4 bar
- High value of nominal voltage at 50Hz [V]
- 0 V
- High value of nominal voltage at 60Hz [V]
- 230 V
- High value of voltage range at 50Hz [V]
- 0 V
- High value of voltage range at 60Hz [V]
- 253 V
- IP protection class
- IP54 (with cable gland)
- Low side max pressure (Ps)
- 22.6 bar
- Low value of nominal voltage at 50Hz [V]
- 0 V
- Low value of nominal voltage at 60Hz [V]
- 208 V
- Low value of voltage range at 50Hz [V]
- 0 V
- Low value of voltage range at 60Hz [V]
- 187 V
- LRA
- 114 A
- Main winding resistance for single-phase compressors [Ohm]
- 0.38 Ohm
- MCC
- 36 A
- Model number
- MTZ50HK1BVE
- Motor protection
- Internal overload protector
- Mounting torque [Nm]
- 15 Nm
- Net weight
- 37 kg
- Nominal cooling capacity at 50Hz
- 6.2 kW
- Nominal cooling capacity at 60Hz
- 8.3 kW
- Number of starts per hour [Max]
- 12
- Oil charge [L]
- 1.8 L
- Oil equalization
- 3/8'' flare SAE
- Oil equalization torque [Nm]
- 30 Nm
- Oil reference
- 175PZ
- Packaging height [mm]
- 455 mm
- Packaging length [mm]
- 395 mm
- Packaging weight [Kg]
- 39 kg
- Packaging width [mm]
- 365 mm
- Packing format
- Single pack
- Packing quantity
- 1
- Phase
- 1
- Power connections
- Screw connectors 10-32 UNF x 9.5
- Refrigerant
- R134aR404AR407CR407AR407FR448AR449AR452AR513A
- Refrigerant charge [kg] [Max]
- 5 kg
- Relief valve
- 30 bar/8 bar
- Rotational speed at 50Hz [rpm]
- 0 rpm
- Rotational speed at 60Hz [rpm]
- 3500 rpm
- Segment usage
- Air conditioningRefrigeration MT
- Shipped fittings
- Suction and discharge solder sleeves, rotolock nuts and gaskets
- Shipped instructions
- Installation instructions
- Shipped mounting
- Mounting kit with grommets, bolts, nuts, sleeves and washers
- Shipped oil
- Initial oil charge
- Suction connection height [mm]
- 265 mm
- Suction connection mounting torque [Nm]
- 110 Nm
- Suction connection pipe size [in]
- 7/8 in
- Suction connection rotolock size [in]
- 1 3/4 in
- Suction connection size [in]
- 1 3/4 in
- Suction connection sleeve pipe size [in]
- 7/8 in
- Swept volume [cm3]
- 85.64 cm³
- Technology
- Reciprocating
- Test dif [bar] [Max]
- 30 bar
- Test HP [bar] [Max]
- 30 bar
- Test LP [bar] [Max]
- 25 bar
- Torque earth [Nm]
- 3 Nm
- Torque power [Nm]
- 3 Nm
- Total height [mm]
- 413 mm
- TYPE
- MTZ
- Type designation
- Compressor
- Voltage of capacitor A [V]
- 440 V
- Voltage of capacitor B [V]
- 330 V
- Voltage of capacitor C [V]
- 440 V
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.
Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.
Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.
Телефон: +7 495 266-67-99
E-mail: sale@df-russia.ru
Вся поставляемая продукция Danfoss имеет официальную гарантию.
Сервис гарантии включает в себя:
- Приемку в сервисном центре для выполнения диагностики дефекта.
- Ремонт.
- Бесплатную доставку клиенту после осуществления диагностики, ремонта или замены товара.
Контакты гарантийного отдела:
Телефон: +7 495 266-67-99E-mail: sale@df-russia.ru
Оставьте заявку в один клик и наш специалист свяжется с вами в кратчайшие сроки:
- Окажет профессиональную консультацию.
- Сообщит цену.
- Сообщит информацию об актуальных акциях и скидках.
- Подскажет ближайшее к вам отделение с наличием нужной продукции.
- Согласует с вами возможное время доставки.
E-mail: sale@df-russia.ru
Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
Нет отзывов об этом товаре.
