Артикул: MTZ56-6VI

В наличии

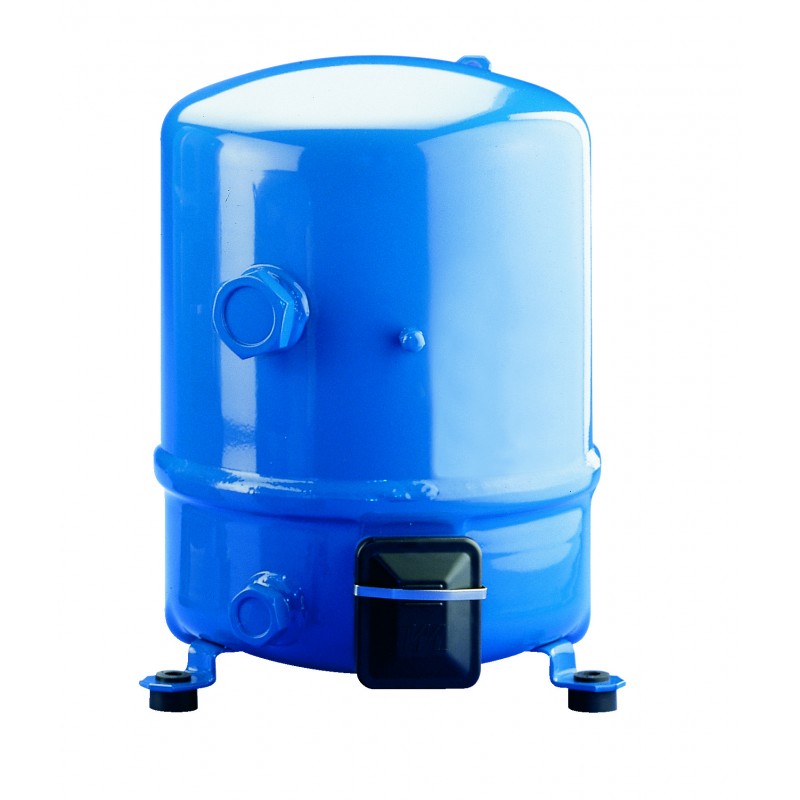

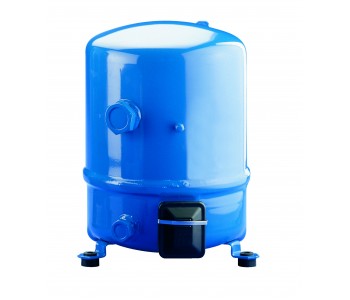

Danfoss MTZ56-⁠6VI - Reciprocating compressor, MTZ56HL6AVE

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss MTZ56-6VI - Reciprocating compressor, MTZ56HL6AVE

Refrigerant: R134a; R404A; R407A; R407C; R407F, Segment usage: Air conditioning; Refrigeration MT, Compressor power supply [V/Ph/Hz]: 230/3/50

Информация о продукте

Gross weight 40.5 kg
Net weight 38 kg
EAN 5702428661324



Approval standard CCC, CE
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 230/3/50
Configuration code Single
Connection type Rotolock
Cylinder 2
Description MTZ056-6
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 Nm
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502011e
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50
Gauge port HP None
Gauge port LP Schrader
Generation code A
Glass mounting Threaded
Glass torque [Nm] 50 Nm
GP LP torque [Nm] 15 Nm
High side max pressure (Ps) 29.4 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 230 V
High value of nominal voltage at 60Hz [V] 0 V
High value of voltage range at 50Hz [V] 253 V
High value of voltage range at 60Hz [V] 0 V
IP protection class IP54 (with cable gland)
Low side max pressure (Ps) 22.6 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 230 V
Low value of nominal voltage at 60Hz [V] 0 V
Low value of voltage range at 50Hz [V] 207 V
Low value of voltage range at 60Hz [V] 0 V
LRA 105 A
MCC 23 A
Model number MTZ56HL6AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 Nm
Nominal cooling capacity at 50Hz 7 kW
Nominal cooling capacity at 60Hz 9.3 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8'' flare SAE
Oil equalization torque [Nm] 30 Nm
Oil reference 175PZ
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging weight [Kg] 39 kg
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Refrigerant R134a, R404A, R407A, R407C, R407F
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Segment usage Air conditioning, Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 Nm
Suction connection pipe size [in] 7/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 7/8 in
Swept volume [cm3] 96.13 cm³
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 Nm
Torque power [Nm] 3 Nm
Total height [mm] 413 mm
Type MTZ
Type designation Compressor
Winding resistance for three-phase compressors with identical windings [Ohm] 0.78 Ohm

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики MTZ56-6VI

Основные характеристики

Approval standard
CCCCE
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
Colour
Blue
Compressor power supply [V/Ph/Hz]
230/3/50
Configuration code
Single
Connection type
Rotolock
Cylinder
2
Description
MTZ056-6
Diameter [mm]
288 mm
Discharge connection height [mm]
74 mm
Discharge connection mounting torque [Nm]
90 Nm
Discharge connection pipe size [in]
3/4 in
Discharge connection rotolock size [in]
1 1/4 in
Discharge connection size [in]
1 1/4 in
Discharge connection sleeve pipe size [in]
3/4 in
Drawing number
8502011e
EAN
5702428661324
Economizer
No
Factory HP [bar]
25 bar
Factory LP [bar]
25 bar
Fitting remark
(shipped with rotolock version only)
Fitting sleeve
ODF
Fitting standard
Rotolock
Frequency [Hz]
50
Gauge port HP
None
Gauge port LP
Schrader
Generation code
A
Glass mounting
Threaded
Glass torque [Nm]
50 Nm
GP LP torque [Nm]
15 Nm
Gross weight
40.5 kg
High side max pressure (Ps)
29.4 bar
High Side TS Max
150 °C
High Side TS Min
-35 °C
High Side Volume
0.6 L
High value of nominal voltage at 50Hz [V]
230 V
High value of nominal voltage at 60Hz [V]
0 V
High value of voltage range at 50Hz [V]
253 V
High value of voltage range at 60Hz [V]
0 V
IP protection class
IP54 (with cable gland)
Low side max pressure (Ps)
22.6 bar
Low Side TS Max
50 °C
Low Side TS Min
-35 °C
Low Side Volume
16.5 L
Low value of nominal voltage at 50Hz [V]
230 V
Low value of nominal voltage at 60Hz [V]
0 V
Low value of voltage range at 50Hz [V]
207 V
Low value of voltage range at 60Hz [V]
0 V
LRA
105 A
MCC
23 A
Model number
MTZ56HL6AVE
Motor protection
Internal overload protector
Mounting torque [Nm]
15 Nm
Net weight
38 kg
Nominal cooling capacity at 50Hz
7 kW
Nominal cooling capacity at 60Hz
9.3 kW
Number of starts per hour [Max]
12
Oil charge [L]
1.8 L
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
30 Nm
Oil reference
175PZ
Packaging height [mm]
455 mm
Packaging length [mm]
395 mm
Packaging weight [Kg]
39 kg
Packaging width [mm]
365 mm
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw connectors 10-32 UNF x 9.5
Refrigerant
R134aR404AR407AR407CR407F
Refrigerant charge [kg] [Max]
5 kg
Relief valve
30 bar/8 bar
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
0 rpm
Segment usage
Air conditioningRefrigeration MT
Shipped fittings
Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
265 mm
Suction connection mounting torque [Nm]
110 Nm
Suction connection pipe size [in]
7/8 in
Suction connection rotolock size [in]
1 3/4 in
Suction connection size [in]
1 3/4 in
Suction connection sleeve pipe size [in]
7/8 in
Swept volume [cm3]
96.13 cm³
Technology
Reciprocating
Test dif [bar] [Max]
30 bar
Test HP [bar] [Max]
30 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
3 Nm
Torque power [Nm]
3 Nm
Total height [mm]
413 mm
TYPE
MTZ
Type designation
Compressor
Winding resistance for three-phase compressors with identical wi
0.78 Ohm
Winding resistance for three-phase compressors with identical wi
0.78 Ohm
