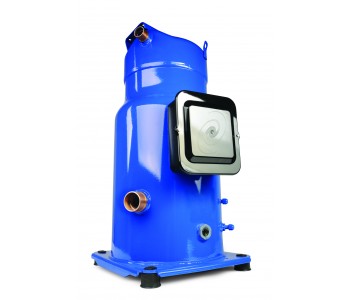

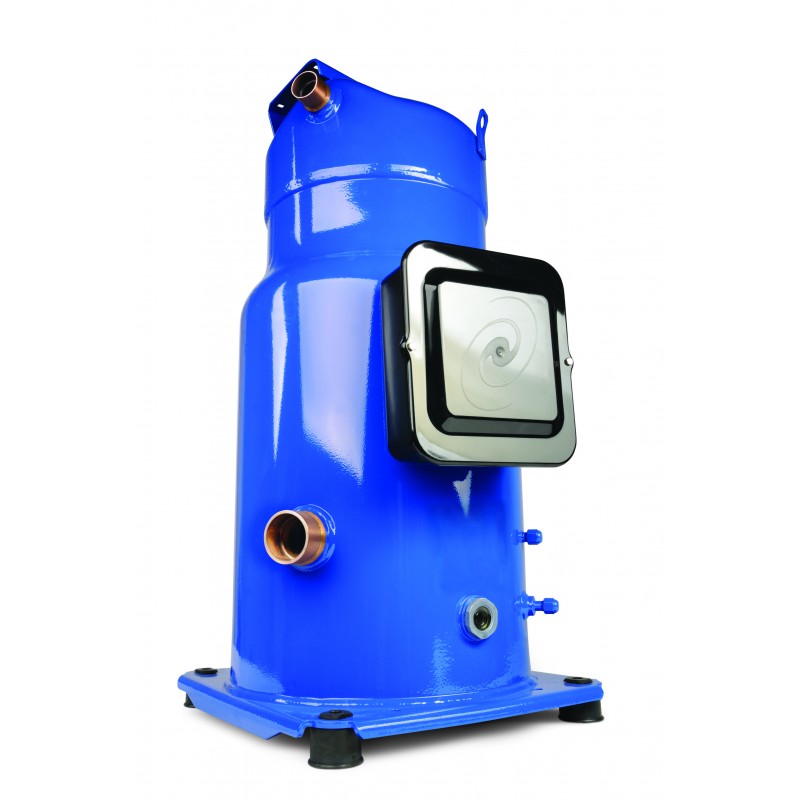

Danfoss SZ120-7VI - Scroll compressor, SZ120S7VC
Refrigerant: R134a; R407C, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 500/3/50 575/3/60
Информация о продукте
| Gross weight | 79.34 kg |
| Net weight | 73 kg |
| EAN | 5702428582834 |
| Gross weight | 79.34 kg |
| Net weight | 73 kg |
| EAN | 5702428582834 |
| Approval standard | CE, UL |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 500/3/50 575/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | SZ120-7 |
| Diameter [mm] | 254 mm |
| Discharge connection height [mm] | 515 mm |
| Discharge connection pipe size [in] | 7/8 in |
| Discharge connection size [in] | 7/8 in |
| Drawing number | 8552037b |
| Economizer | No |
| Factory HP [bar] | 33 bar |
| Factory LP [bar] | 25 bar |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | C |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 Nm |
| GP LP torque [Nm] | 15 Nm |
| High side max pressure (Ps) | 34.3 bar |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 1.1 L |
| High value of nominal voltage at 50Hz [V] | 500 V |
| High value of nominal voltage at 60Hz [V] | 575 V |
| High value of voltage range at 50Hz [V] | 550 V |
| High value of voltage range at 60Hz [V] | 632 V |
| IP protection class | IP54 (with cable gland) |
| Low side max pressure (Ps) | 25 bar |
| Low Side TS Max | 54 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 13.6 L |
| Low value of nominal voltage at 50Hz [V] | 500 V |
| Low value of nominal voltage at 60Hz [V] | 575 V |
| Low value of voltage range at 50Hz [V] | 450 V |
| Low value of voltage range at 60Hz [V] | 517 V |
| LRA | 85 A |
| Maximum Operating Current [MOC] | 18 A |
| MCC | 19 A |
| Model number | SZ120S7VC |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 21 Nm |
| Nominal cooling capacity at 50Hz | 25.6 kW |
| Nominal cooling capacity at 60Hz | 34.9 kW |
| Nominal heating capacity at 50Hz | 24.4 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 3.25 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 48 Nm |
| Oil reference | 160SZ |
| Oil type | POE |
| Packaging height [mm] | 596 mm |
| Packaging length [mm] | 470 mm |
| Packaging weight [Kg] | 78 kg |
| Packaging width [mm] | 370 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw 4.8 mm |
| Refrigerant | R134a, R407C |
| Refrigerant charge [kg] [Max] | 10 kg |
| Relief valve | None |
| RLA | 13.6 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 178 mm |
| Suction connection pipe size [in] | 1 3/8 in |
| Suction connection size [in] | 1 3/8 in |
| Swept volume [cm3] | 166.6 cm³ |
| Technology | Scroll |
| Test dif [bar] [Max] | 24 bar |
| Test HP [bar] [Max] | 32 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 2 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 558 mm |
| Type | SZ |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 1.57 Ohm |
| Approval standard | CE, UL |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 500/3/50 575/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | SZ120-7 |
| Diameter [mm] | 254 mm |
| Discharge connection height [mm] | 515 mm |
| Discharge connection pipe size [in] | 7/8 in |
| Discharge connection size [in] | 7/8 in |
| Drawing number | 8552037b |
| Economizer | No |
| Factory HP [bar] | 33 bar |
| Factory LP [bar] | 25 bar |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | C |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 Nm |
| GP LP torque [Nm] | 15 Nm |
| High side max pressure (Ps) | 34.3 bar |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 1.1 L |
| High value of nominal voltage at 50Hz [V] | 500 V |
| High value of nominal voltage at 60Hz [V] | 575 V |
| High value of voltage range at 50Hz [V] | 550 V |
| High value of voltage range at 60Hz [V] | 632 V |
| IP protection class | IP54 (with cable gland) |
| Low side max pressure (Ps) | 25 bar |
| Low Side TS Max | 54 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 13.6 L |
| Low value of nominal voltage at 50Hz [V] | 500 V |
| Low value of nominal voltage at 60Hz [V] | 575 V |
| Low value of voltage range at 50Hz [V] | 450 V |
| Low value of voltage range at 60Hz [V] | 517 V |
| LRA | 85 A |
| Maximum Operating Current [MOC] | 18 A |
| MCC | 19 A |
| Model number | SZ120S7VC |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 21 Nm |
| Nominal cooling capacity at 50Hz | 25.6 kW |
| Nominal cooling capacity at 60Hz | 34.9 kW |
| Nominal heating capacity at 50Hz | 24.4 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 3.25 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 48 Nm |
| Oil reference | 160SZ |
| Oil type | POE |
| Packaging height [mm] | 596 mm |
| Packaging length [mm] | 470 mm |
| Packaging weight [Kg] | 78 kg |
| Packaging width [mm] | 370 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw 4.8 mm |
| Refrigerant | R134a, R407C |
| Refrigerant charge [kg] [Max] | 10 kg |
| Relief valve | None |
| RLA | 13.6 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 178 mm |
| Suction connection pipe size [in] | 1 3/8 in |
| Suction connection size [in] | 1 3/8 in |
| Swept volume [cm3] | 166.6 cm³ |
| Technology | Scroll |
| Test dif [bar] [Max] | 24 bar |
| Test HP [bar] [Max] | 32 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 2 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 558 mm |
| Type | SZ |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 1.57 Ohm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Основные характеристики
- Approval standard
- CEUL
- Brand technique
- Scroll compressor
- Capacity control
- Fixed speed
- Colour
- Blue
- Compressor power supply [V/Ph/Hz]
- 500/3/50 575/3/60
- Configuration code
- Single
- Connection type
- Brazed
- Description
- SZ120-7
- Diameter [mm]
- 254 mm
- Discharge connection height [mm]
- 515 mm
- Discharge connection pipe size [in]
- 7/8 in
- Discharge connection size [in]
- 7/8 in
- Drawing number
- 8552037b
- EAN
- 5702428582834
- Economizer
- No
- Factory HP [bar]
- 33 bar
- Factory LP [bar]
- 25 bar
- Fitting standard
- ODF
- Frequency [Hz]
- 50/60
- Gauge port HP
- None
- Gauge port LP
- Schrader
- Generation code
- C
- Glass mounting
- Threaded
- Glass torque [Nm]
- 50 Nm
- GP LP torque [Nm]
- 15 Nm
- Gross weight
- 79.34 kg
- High side max pressure (Ps)
- 34.3 bar
- High Side TS Max
- 150 °C
- High Side TS Min
- -35 °C
- High Side Volume
- 1.1 L
- High value of nominal voltage at 50Hz [V]
- 500 V
- High value of nominal voltage at 60Hz [V]
- 575 V
- High value of voltage range at 50Hz [V]
- 550 V
- High value of voltage range at 60Hz [V]
- 632 V
- IP protection class
- IP54 (with cable gland)
- Low side max pressure (Ps)
- 25 bar
- Low Side TS Max
- 54 °C
- Low Side TS Min
- -35 °C
- Low Side Volume
- 13.6 L
- Low value of nominal voltage at 50Hz [V]
- 500 V
- Low value of nominal voltage at 60Hz [V]
- 575 V
- Low value of voltage range at 50Hz [V]
- 450 V
- Low value of voltage range at 60Hz [V]
- 517 V
- LRA
- 85 A
- Maximum Operating Current [MOC]
- 18 A
- MCC
- 19 A
- Model number
- SZ120S7VC
- Motor protection
- Internal overload protector
- Mounting torque [Nm]
- 21 Nm
- Net weight
- 73 kg
- Nominal cooling capacity at 50Hz
- 25.6 kW
- Nominal cooling capacity at 60Hz
- 34.9 kW
- Nominal heating capacity at 50Hz
- 24.4 kW
- Number of starts per hour [Max]
- 12
- Oil charge [L]
- 3.25 L
- Oil equalization
- 3/8'' flare SAE
- Oil equalization torque [Nm]
- 48 Nm
- Oil reference
- 160SZ
- Oil type
- POE
- Packaging height [mm]
- 596 mm
- Packaging length [mm]
- 470 mm
- Packaging weight [Kg]
- 78 kg
- Packaging width [mm]
- 370 mm
- Packing format
- Single pack
- Packing quantity
- 1
- Phase
- 3
- Power connections
- Screw 4.8 mm
- Refrigerant
- R134aR407C
- Refrigerant charge [kg] [Max]
- 10 kg
- Relief valve
- None
- RLA
- 13.6 A
- Rotational speed at 50Hz [rpm]
- 2900 rpm
- Rotational speed at 60Hz [rpm]
- 3500 rpm
- Segment usage
- Air conditioning
- Shipped instructions
- Installation instructions
- Shipped mounting
- Mounting kit with grommets, bolts, nuts, sleeves and washers
- Shipped oil
- Initial oil charge
- Suction connection height [mm]
- 178 mm
- Suction connection pipe size [in]
- 1 3/8 in
- Suction connection size [in]
- 1 3/8 in
- Swept volume [cm3]
- 166.6 cm³
- Technology
- Scroll
- Test dif [bar] [Max]
- 24 bar
- Test HP [bar] [Max]
- 32 bar
- Test LP [bar] [Max]
- 25 bar
- Torque earth [Nm]
- 2 Nm
- Torque power [Nm]
- 3 Nm
- Total height [mm]
- 558 mm
- TYPE
- SZ
- Type designation
- Compressor
- Viscosity [cP]
- 32 cP
- Winding resistance for three-phase compressors with identical wi
- 1.57 Ohm
- Winding resistance for three-phase compressors with identical wi
- 1.57 Ohm
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.
Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.
Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.
Телефон: +7 495 266-67-99
E-mail: sale@df-russia.ru
Вся поставляемая продукция Danfoss имеет официальную гарантию.
Сервис гарантии включает в себя:
- Приемку в сервисном центре для выполнения диагностики дефекта.
- Ремонт.
- Бесплатную доставку клиенту после осуществления диагностики, ремонта или замены товара.
Контакты гарантийного отдела:
Телефон: +7 495 266-67-99E-mail: sale@df-russia.ru
Оставьте заявку в один клик и наш специалист свяжется с вами в кратчайшие сроки:
- Окажет профессиональную консультацию.
- Сообщит цену.
- Сообщит информацию об актуальных акциях и скидках.
- Подскажет ближайшее к вам отделение с наличием нужной продукции.
- Согласует с вами возможное время доставки.
E-mail: sale@df-russia.ru
Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
Нет отзывов об этом товаре.
