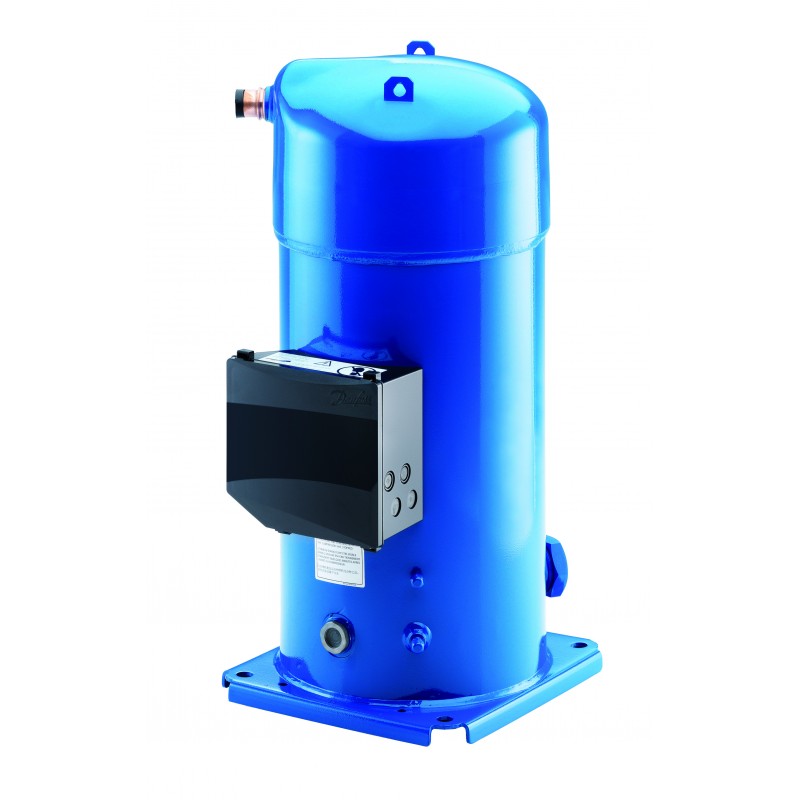

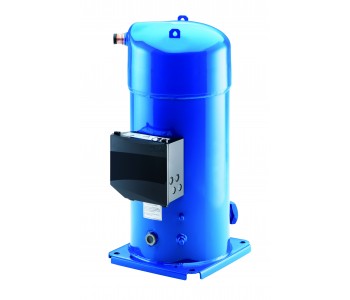

Danfoss SZ240A4PAI - Scroll compressor, SZ240A4PAE

Затрудняетесь с выбором?

Оставьте ваш телефон, и наш специалист перезвонит вам

Артикул: SZ240A4PAI

Danfoss SZ240A4PAI - Scroll compressor, SZ240A4PAE

Name: Danfoss SZ240A4PAI - Scroll compressor, SZ240A4PAE
Brand: Danfoss
SKU: SZ240A4PAI
Availability: InStock

Доступно к заказу

Цена по запросу

Получить КП / Счет

Получи КП от 5 лучших поставщиков промышленного оборудования

С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

Danfoss SZ240A4PAI - Scroll compressor, SZ240A4PAE

Refrigerant: R134a; R407C, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60

Информация о продукте

Gross weight	155.17 kg

Net weight	151 kg

Gross weight	155.17 kg
Net weight	151 kg

Approval standard	CE, UL
Brand technique	Scroll compressor
Capacity control	Fixed speed
Colour	Blue
Compressor power supply [V/Ph/Hz]	400/3/50 460/3/60
Configuration code	Single
Connection type	Rotolock
Description	SZ240-4
Diameter [mm]	344 mm
Discharge connection height [mm]	654 mm
Discharge connection mounting torque [Nm]	110 Nm
Discharge connection pipe size [in]	1 1/8 in
Discharge connection rotolock size [in]	1 3/4 in
Discharge connection size [in]	1 3/4 in
Discharge connection sleeve pipe size [in]	1 1/8 in
Drawing number	8556098b
Economizer	No
Factory HP [bar]	33 bar
Factory LP [bar]	25 bar
Fitting remark	(shipped with rotolock version only)
Fitting sleeve	ODF
Fitting standard	Rotolock
Frequency [Hz]	50/60
Gauge port HP	None
Gauge port LP	Schrader
Generation code	A
Glass mounting	Threaded
Glass torque [Nm]	50 Nm
GP LP torque [Nm]	15 Nm
High side max pressure (Ps)	31.8 bar
High Side TS Max	150 °C
High Side TS Min	-35 °C
High Side Volume	5 L
High value of nominal voltage at 50Hz [V]	400 V
High value of nominal voltage at 60Hz [V]	460 V
High value of voltage range at 50Hz [V]	440 V
High value of voltage range at 60Hz [V]	506 V
IP protection class	IP54 (with cable gland)
Low side max pressure (Ps)	20 bar
Low Side TS Max	52 °C
Low Side TS Min	-35 °C
Low Side Volume	34.1 L
Low value of nominal voltage at 50Hz [V]	380 V
Low value of nominal voltage at 60Hz [V]	460 V
Low value of voltage range at 50Hz [V]	342 V
Low value of voltage range at 60Hz [V]	414 V
LRA	215 A
MCC	50 A
Model number	SZ240A4PAE
Motor protection	Electronic protection module, 24 V ac
Mounting torque [Nm]	40 Nm

Nominal cooling capacity at 50Hz	52.7 kW
Nominal cooling capacity at 60Hz	71.2 kW
Nominal heating capacity at 50Hz	49.8 kW
Number of starts per hour [Max]	12
Oil charge [L]	8 L
Oil drain	1/4'' flare
Oil drain torque [Nm]	35 Nm
Oil equalization	1/2'' flare
Oil equalization torque [Nm]	66 Nm
Oil reference	160SZ
Oil type	POE
Packaging height [mm]	780 mm
Packaging length [mm]	510 mm
Packaging weight [Kg]	156 kg
Packaging width [mm]	465 mm
Packing format	Single pack
Packing quantity	1
Phase	3
Power connections	Stud M5
Refrigerant	R134a, R407C
Refrigerant charge [kg] [Max]	16 kg
Relief valve	Yes
Reverse rotation protection	Electronic module
RLA	35.7 A
Rotational speed at 50Hz [rpm]	2900 rpm
Rotational speed at 60Hz [rpm]	3500 rpm
Segment usage	Air conditioning
Shipped fittings	Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions	Installation instructions
Shipped module	Electronic protection module mounted in terminal box
Shipped mounting	Mounting kit with grommets and sleeves
Shipped oil	Initial oil charge
Suction connection height [mm]	196 mm
Suction connection mounting torque [Nm]	130 Nm
Suction connection pipe size [in]	1 5/8 in
Suction connection rotolock size [in]	2 1/4 in
Suction connection size [in]	2 1/4 in
Suction connection sleeve pipe size [in]	1 5/8 in
Swept volume [cm3]	347.8 cm³
Technology	Scroll
Test dif [bar] [Max]	24 bar
Test HP [bar] [Max]	32 bar
Test LP [bar] [Max]	20 bar
Torque earth [Nm]	4 Nm
Torque power [Nm]	3 Nm
Total height [mm]	727 mm
Type	SZ
Type designation	Compressor
Viscosity [cP]	32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]	0.616 Ohm

Approval standard	CE, UL
Brand technique	Scroll compressor
Capacity control	Fixed speed
Colour	Blue
Compressor power supply [V/Ph/Hz]	400/3/50 460/3/60
Configuration code	Single
Connection type	Rotolock
Description	SZ240-4
Diameter [mm]	344 mm
Discharge connection height [mm]	654 mm
Discharge connection mounting torque [Nm]	110 Nm
Discharge connection pipe size [in]	1 1/8 in
Discharge connection rotolock size [in]	1 3/4 in
Discharge connection size [in]	1 3/4 in
Discharge connection sleeve pipe size [in]	1 1/8 in
Drawing number	8556098b
Economizer	No
Factory HP [bar]	33 bar
Factory LP [bar]	25 bar
Fitting remark	(shipped with rotolock version only)
Fitting sleeve	ODF
Fitting standard	Rotolock
Frequency [Hz]	50/60
Gauge port HP	None
Gauge port LP	Schrader
Generation code	A
Glass mounting	Threaded
Glass torque [Nm]	50 Nm
GP LP torque [Nm]	15 Nm
High side max pressure (Ps)	31.8 bar
High Side TS Max	150 °C
High Side TS Min	-35 °C
High Side Volume	5 L
High value of nominal voltage at 50Hz [V]	400 V
High value of nominal voltage at 60Hz [V]	460 V
High value of voltage range at 50Hz [V]	440 V
High value of voltage range at 60Hz [V]	506 V
IP protection class	IP54 (with cable gland)
Low side max pressure (Ps)	20 bar
Low Side TS Max	52 °C
Low Side TS Min	-35 °C
Low Side Volume	34.1 L
Low value of nominal voltage at 50Hz [V]	380 V
Low value of nominal voltage at 60Hz [V]	460 V
Low value of voltage range at 50Hz [V]	342 V
Low value of voltage range at 60Hz [V]	414 V
LRA	215 A
MCC	50 A
Model number	SZ240A4PAE
Motor protection	Electronic protection module, 24 V ac
Mounting torque [Nm]	40 Nm
Nominal cooling capacity at 50Hz	52.7 kW
Nominal cooling capacity at 60Hz	71.2 kW
Nominal heating capacity at 50Hz	49.8 kW
Number of starts per hour [Max]	12
Oil charge [L]	8 L
Oil drain	1/4'' flare
Oil drain torque [Nm]	35 Nm
Oil equalization	1/2'' flare
Oil equalization torque [Nm]	66 Nm
Oil reference	160SZ
Oil type	POE
Packaging height [mm]	780 mm
Packaging length [mm]	510 mm
Packaging weight [Kg]	156 kg
Packaging width [mm]	465 mm
Packing format	Single pack
Packing quantity	1
Phase	3
Power connections	Stud M5
Refrigerant	R134a, R407C
Refrigerant charge [kg] [Max]	16 kg
Relief valve	Yes
Reverse rotation protection	Electronic module
RLA	35.7 A
Rotational speed at 50Hz [rpm]	2900 rpm
Rotational speed at 60Hz [rpm]	3500 rpm
Segment usage	Air conditioning
Shipped fittings	Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions	Installation instructions
Shipped module	Electronic protection module mounted in terminal box
Shipped mounting	Mounting kit with grommets and sleeves
Shipped oil	Initial oil charge
Suction connection height [mm]	196 mm
Suction connection mounting torque [Nm]	130 Nm
Suction connection pipe size [in]	1 5/8 in
Suction connection rotolock size [in]	2 1/4 in
Suction connection size [in]	2 1/4 in
Suction connection sleeve pipe size [in]	1 5/8 in
Swept volume [cm3]	347.8 cm³
Technology	Scroll
Test dif [bar] [Max]	24 bar
Test HP [bar] [Max]	32 bar
Test LP [bar] [Max]	20 bar
Torque earth [Nm]	4 Nm
Torque power [Nm]	3 Nm
Total height [mm]	727 mm
Type	SZ
Type designation	Compressor
Viscosity [cP]	32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]	0.616 Ohm

Основные характеристики

Approval standard: CEUL
Brand technique: Scroll compressor
Capacity control: Fixed speed
Colour: Blue
Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60
Configuration code: Single
Connection type: Rotolock
Description: SZ240-4
Diameter [mm]: 344 mm
Discharge connection height [mm]: 654 mm
Discharge connection mounting torque [Nm]: 110 Nm
Discharge connection pipe size [in]: 1 1/8 in
Discharge connection rotolock size [in]: 1 3/4 in
Discharge connection size [in]: 1 3/4 in
Discharge connection sleeve pipe size [in]: 1 1/8 in
Drawing number: 8556098b
Economizer: No
Factory HP [bar]: 33 bar
Factory LP [bar]: 25 bar
Fitting remark: (shipped with rotolock version only)
Fitting sleeve: ODF
Fitting standard: Rotolock
Frequency [Hz]: 50/60
Gauge port HP: None
Gauge port LP: Schrader
Generation code: A
Glass mounting: Threaded
Glass torque [Nm]: 50 Nm
GP LP torque [Nm]: 15 Nm
Gross weight: 155.17 kg
High side max pressure (Ps): 31.8 bar
High Side TS Max: 150 °C
High Side TS Min: -35 °C
High Side Volume: 5 L
High value of nominal voltage at 50Hz [V]: 400 V
High value of nominal voltage at 60Hz [V]: 460 V
High value of voltage range at 50Hz [V]: 440 V
High value of voltage range at 60Hz [V]: 506 V
IP protection class: IP54 (with cable gland)
Low side max pressure (Ps): 20 bar
Low Side TS Max: 52 °C
Low Side TS Min: -35 °C
Low Side Volume: 34.1 L
Low value of nominal voltage at 50Hz [V]: 380 V
Low value of nominal voltage at 60Hz [V]: 460 V
Low value of voltage range at 50Hz [V]: 342 V
Low value of voltage range at 60Hz [V]: 414 V
LRA: 215 A
MCC: 50 A
Model number: SZ240A4PAE
Motor protection: Electronic protection module, 24 V ac
Mounting torque [Nm]: 40 Nm

Net weight: 151 kg
Nominal cooling capacity at 50Hz: 52.7 kW
Nominal cooling capacity at 60Hz: 71.2 kW
Nominal heating capacity at 50Hz: 49.8 kW
Number of starts per hour [Max]: 12
Oil charge [L]: 8 L
Oil drain: 1/4'' flare
Oil drain torque [Nm]: 35 Nm
Oil equalization: 1/2'' flare
Oil equalization torque [Nm]: 66 Nm
Oil reference: 160SZ
Oil type: POE
Packaging height [mm]: 780 mm
Packaging length [mm]: 510 mm
Packaging weight [Kg]: 156 kg
Packaging width [mm]: 465 mm
Packing format: Single pack
Packing quantity: 1
Phase: 3
Power connections: Stud M5
Refrigerant: R134aR407C
Refrigerant charge [kg] [Max]: 16 kg
Relief valve: Yes
Reverse rotation protection: Electronic module
RLA: 35.7 A
Rotational speed at 50Hz [rpm]: 2900 rpm
Rotational speed at 60Hz [rpm]: 3500 rpm
Segment usage: Air conditioning
Shipped fittings: Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions: Installation instructions
Shipped module: Electronic protection module mounted in terminal box
Shipped mounting: Mounting kit with grommets and sleeves
Shipped oil: Initial oil charge
Suction connection height [mm]: 196 mm
Suction connection mounting torque [Nm]: 130 Nm
Suction connection pipe size [in]: 1 5/8 in
Suction connection rotolock size [in]: 2 1/4 in
Suction connection size [in]: 2 1/4 in
Suction connection sleeve pipe size [in]: 1 5/8 in
Swept volume [cm3]: 347.8 cm³
Technology: Scroll
Test dif [bar] [Max]: 24 bar
Test HP [bar] [Max]: 32 bar
Test LP [bar] [Max]: 20 bar
Torque earth [Nm]: 4 Nm
Torque power [Nm]: 3 Nm
Total height [mm]: 727 mm
TYPE: SZ
Type designation: Compressor
Viscosity [cP]: 32 cP
Winding resistance for three-phase compressors with identical wi: 0.616 Ohm
Winding resistance for three-phase compressors with identical wi: 0.616 Ohm

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.

Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.

Мы предлагаем следующие способы оплаты товара:

Оплата наличными

Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.

Безналичная оплата

Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.

Электронные способы

Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.

Контакты отдела доставки:
Телефон: +7 495 266-67-99
E-mail: sale@df-russia.ru

Запросить КП / Счет

Вся поставляемая продукция Danfoss имеет официальную гарантию.

Сервис гарантии включает в себя:

Приемку в сервисном центре для выполнения диагностики дефекта.
Ремонт.
Бесплатную доставку клиенту после осуществления диагностики, ремонта или замены товара.

Контакты гарантийного отдела:

Телефон: +7 495 266-67-99
E-mail: sale@df-russia.ru

Запросить КП / Счет

Оставьте заявку в один клик и наш специалист свяжется с вами в кратчайшие сроки:

Окажет профессиональную консультацию.
Сообщит цену.
Сообщит информацию об актуальных акциях и скидках.
Подскажет ближайшее к вам отделение с наличием нужной продукции.
Согласует с вами возможное время доставки.

Связаться с отделом продажТелефон: +7 495 266-67-99
E-mail: sale@df-russia.ru

Запросить КП / Счет

Запрос цен, наличия или консультация

Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

Отзывы0

Нет отзывов об этом товаре.

Написать отзыв

Рейтинг

Отзывы с оценкой

	0%	0 отзывов
	0%	0 отзывов
	0%	0 отзывов
	0%	0 отзывов
	0%	0 отзывов

Теги: SZ240A4PAI, Scroll compressor, SZ240A4PAE
