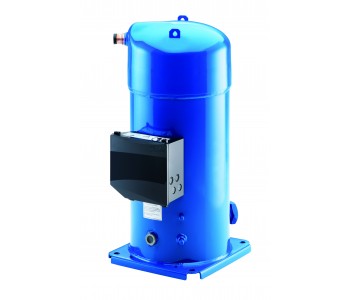

Danfoss SZ300A9PBM - Scroll compressor, SZ300A9PBE
Refrigerant: R134a; R407C, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 380/3/60
Информация о продукте
| Gross weight | 161.5 kg |
| Net weight | 157 kg |
| Gross weight | 161.5 kg |
| Net weight | 157 kg |
| Approval standard | CE, UL |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380/3/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Description | SZ300-9 |
| Diameter [mm] | 344 mm |
| Discharge connection height [mm] | 665 mm |
| Discharge connection mounting torque [Nm] | 110 Nm |
| Discharge connection pipe size [in] | 1 1/8 in |
| Discharge connection rotolock size [in] | 1 3/4 in |
| Discharge connection size [in] | 1 3/4 in |
| Discharge connection sleeve pipe size [in] | 1 1/8 in |
| Drawing number | 8556099b |
| Economizer | No |
| Factory HP [bar] | 33 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | A |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 Nm |
| GP LP torque [Nm] | 15 Nm |
| High side max pressure (Ps) | 31.8 bar |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 5 L |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 380 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 418 V |
| IP protection class | IP54 (with cable gland) |
| Low side max pressure (Ps) | 20 bar |
| Low Side TS Max | 52 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 34.1 L |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| LRA | 305 A |
| MCC | 74 A |
| Model number | SZ300A9PBE |
| Motor protection | Electronic protection module, 110/240 V |
| Mounting torque [Nm] | 40 Nm |
| Nominal cooling capacity at 60Hz | 87.9 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 8 L |
| Oil drain | 1/4'' flare |
| Oil drain torque [Nm] | 35 Nm |
| Oil equalization | 1/2'' flare |
| Oil equalization torque [Nm] | 66 Nm |
| Oil reference | 160SZ |
| Oil type | POE |
| Packaging height [mm] | 915 mm |
| Packaging length [mm] | 1140 mm |
| Packaging weight [Kg] | 635 kg |
| Packaging width [mm] | 950 mm |
| Packing format | Industrial pack |
| Packing quantity | 4 |
| Phase | 3 |
| Power connections | Stud M5 |
| Refrigerant | R134a, R407C |
| Refrigerant charge [kg] [Max] | 20 kg |
| Relief valve | Yes |
| Reverse rotation protection | Electronic module |
| RLA | 52.9 A |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped module | Electronic protection module mounted in terminal box |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 196 mm |
| Suction connection mounting torque [Nm] | 130 Nm |
| Suction connection pipe size [in] | 1 5/8 in |
| Suction connection rotolock size [in] | 2 1/4 in |
| Suction connection size [in] | 2 1/4 in |
| Suction connection sleeve pipe size [in] | 1 5/8 in |
| Swept volume [cm3] | 437.5 cm³ |
| Technology | Scroll |
| Test dif [bar] [Max] | 24 bar |
| Test HP [bar] [Max] | 32 bar |
| Test LP [bar] [Max] | 20 bar |
| Torque earth [Nm] | 4 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 738 mm |
| Type | SZ |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.355 Ohm |
| Approval standard | CE, UL |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380/3/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Description | SZ300-9 |
| Diameter [mm] | 344 mm |
| Discharge connection height [mm] | 665 mm |
| Discharge connection mounting torque [Nm] | 110 Nm |
| Discharge connection pipe size [in] | 1 1/8 in |
| Discharge connection rotolock size [in] | 1 3/4 in |
| Discharge connection size [in] | 1 3/4 in |
| Discharge connection sleeve pipe size [in] | 1 1/8 in |
| Drawing number | 8556099b |
| Economizer | No |
| Factory HP [bar] | 33 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | A |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 Nm |
| GP LP torque [Nm] | 15 Nm |
| High side max pressure (Ps) | 31.8 bar |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 5 L |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 380 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 418 V |
| IP protection class | IP54 (with cable gland) |
| Low side max pressure (Ps) | 20 bar |
| Low Side TS Max | 52 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 34.1 L |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| LRA | 305 A |
| MCC | 74 A |
| Model number | SZ300A9PBE |
| Motor protection | Electronic protection module, 110/240 V |
| Mounting torque [Nm] | 40 Nm |
| Nominal cooling capacity at 60Hz | 87.9 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 8 L |
| Oil drain | 1/4'' flare |
| Oil drain torque [Nm] | 35 Nm |
| Oil equalization | 1/2'' flare |
| Oil equalization torque [Nm] | 66 Nm |
| Oil reference | 160SZ |
| Oil type | POE |
| Packaging height [mm] | 915 mm |
| Packaging length [mm] | 1140 mm |
| Packaging weight [Kg] | 635 kg |
| Packaging width [mm] | 950 mm |
| Packing format | Industrial pack |
| Packing quantity | 4 |
| Phase | 3 |
| Power connections | Stud M5 |
| Refrigerant | R134a, R407C |
| Refrigerant charge [kg] [Max] | 20 kg |
| Relief valve | Yes |
| Reverse rotation protection | Electronic module |
| RLA | 52.9 A |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped module | Electronic protection module mounted in terminal box |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 196 mm |
| Suction connection mounting torque [Nm] | 130 Nm |
| Suction connection pipe size [in] | 1 5/8 in |
| Suction connection rotolock size [in] | 2 1/4 in |
| Suction connection size [in] | 2 1/4 in |
| Suction connection sleeve pipe size [in] | 1 5/8 in |
| Swept volume [cm3] | 437.5 cm³ |
| Technology | Scroll |
| Test dif [bar] [Max] | 24 bar |
| Test HP [bar] [Max] | 32 bar |
| Test LP [bar] [Max] | 20 bar |
| Torque earth [Nm] | 4 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 738 mm |
| Type | SZ |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.355 Ohm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
