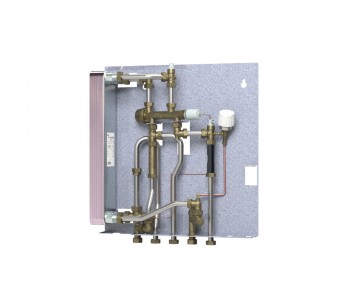

Danfoss 144B2349 - Akva Lux II S-F, 6 bar, 90 °C, DHW controller name: PTC2
Akva Lux II S-F type 1 with zone valve, insulation
Информация о продукте
| Gross weight | 39 kg |
| Net weight | 34 kg |
| Gross weight | 39 kg |
| Net weight | 34 kg |
| Application type | DHW, HE direct mixing loop |
| Connection direction | Bottom |
| Cover material | White-lacquered In wall |
| Cover option | Extra |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth without cover [mm] | 150 mm |
| Description | Akva Lux II S-F type 1 with zone valve, insulation |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 45 kW |
| DHW capacity [kW] [Min] | 37 kW |
| DHW circulation | Optional |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/Thermost. |
| DHW controller name | PTC2 |
| DHW pipe size | Ø18 |
| Differential pressure controller | Integrated |
| Fitting piece | Energy meter return and cold water meter |
| Floor heating circuit - pump brand | Wilo |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heat exchanger test pressure [bar] | 38 bar |
| Heating capacity [kW] [Max] | 15 kW |
| Heating capacity [kW] [Min] | 10 kW |
| Heating control type | Thermostatic |
| Heating controller name | FTC/RA-C |
| Heating pump brand | Wilo |
| Heating pump type | Yonos Para |
| Height without cover [mm] | 572 mm |
| HEX heating alloy | AISI 316 |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Pipe insulation |
| Number of households [Max] | 2 |
| Number of households [Min] | 1 |
| Package depth [mm] | 410 mm |
| Package height [mm] | 390 mm |
| Package width [mm] | 215 mm |
| Pressure nominal primary [bar] | 6 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Product group | Small Stations |
| Remarks | Dir. HE with mix. Loop and DHW, with zone valve |
| Supply temperature construction [˚C] | 90 °C |
| Supply voltage [V] AC | 230 V |
| Type | Akva Lux II S-F |
| Width without cover [mm] | 456 mm |
| Application type | DHW, HE direct mixing loop |
| Connection direction | Bottom |
| Cover material | White-lacquered In wall |
| Cover option | Extra |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth without cover [mm] | 150 mm |
| Description | Akva Lux II S-F type 1 with zone valve, insulation |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 45 kW |
| DHW capacity [kW] [Min] | 37 kW |
| DHW circulation | Optional |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/Thermost. |
| DHW controller name | PTC2 |
| DHW pipe size | Ø18 |
| Differential pressure controller | Integrated |
| Fitting piece | Energy meter return and cold water meter |
| Floor heating circuit - pump brand | Wilo |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heat exchanger test pressure [bar] | 38 bar |
| Heating capacity [kW] [Max] | 15 kW |
| Heating capacity [kW] [Min] | 10 kW |
| Heating control type | Thermostatic |
| Heating controller name | FTC/RA-C |
| Heating pump brand | Wilo |
| Heating pump type | Yonos Para |
| Height without cover [mm] | 572 mm |
| HEX heating alloy | AISI 316 |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Pipe insulation |
| Number of households [Max] | 2 |
| Number of households [Min] | 1 |
| Package depth [mm] | 410 mm |
| Package height [mm] | 390 mm |
| Package width [mm] | 215 mm |
| Pressure nominal primary [bar] | 6 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Product group | Small Stations |
| Remarks | Dir. HE with mix. Loop and DHW, with zone valve |
| Supply temperature construction [˚C] | 90 °C |
| Supply voltage [V] AC | 230 V |
| Type | Akva Lux II S-F |
| Width without cover [mm] | 456 mm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 144B2349
Основные характеристики
- Application type
- DHW, HE direct mixing loop
- Connection direction
- Bottom
- Cover material
- White-lacquered In wall
- Cover option
- Extra
- DCW static pressure [bar] [Min]
- 2 bar
- Depth without cover [mm]
- 150 mm
- Description
- Akva Lux II S-F type 1 with zone valve, insulation
- DH connection size
- 3/4"
- DH connection type
- G int. Thread
- DH pipe size
- Ø18
- DHW capacity [kW] [Max]
- 45 kW
- DHW capacity [kW] [Min]
- 37 kW
- DHW circulation
- Optional
- DHW connection size
- 3/4"
- DHW connection type
- G int. Thread
- DHW Control type
- Flow/Thermost.
- DHW controller name
- PTC2
- DHW pipe size
- Ø18
- Differential pressure controller
- Integrated
- Fitting piece
- Energy meter return and cold water meter
- Floor heating circuit - pump brand
- Wilo
- Gross weight
- 39 kg
- HE connection size
- 3/4"
- HE connection type
- G int. Thread
- HE pipe size
- Ø18
- Heat exchanger test pressure [bar]
- 38 bar
- Heating capacity [kW] [Max]
- 15 kW
- Heating capacity [kW] [Min]
- 10 kW
- Heating control type
- Thermostatic
- Heating controller name
- FTC/RA-C
- Heating pump brand
- Wilo
- Heating pump type
- Yonos Para
- Height without cover [mm]
- 572 mm
- HEX heating alloy
- AISI 316
- HEX heating brazing material
- Copper
- HEX heating type
- Brazed
- Insulation material
- Pipe insulation
- Net weight
- 34 kg
- Number of households [Max]
- 2
- Number of households [Min]
- 1
- Package depth [mm]
- 410 mm
- Package height [mm]
- 390 mm
- Package width [mm]
- 215 mm
- Pressure nominal primary [bar]
- 6 bar
- Pressure nominal secondary [bar]
- 10 bar
- Product group
- Small Stations
- Remarks
- Dir. HE with mix. Loop and DHW, with zone valve
- Supply temperature construction [˚C]
- 90 °C
- Supply voltage [V] AC
- 230 V
- TYPE
- Akva Lux II S-F
- Width without cover [mm]
- 456 mm
