Артикул: 144B3794

В наличии

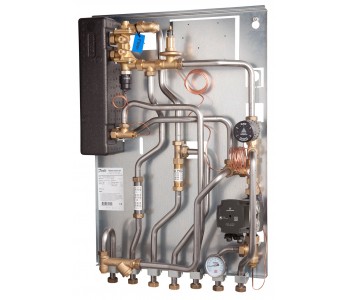

Danfoss 144B3794 - Termix VMTD-⁠F MIX-⁠I, Type 1, 16 bar, 120 °C, DHW controller name: IHPT

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss 144B3794 - Termix VMTD-F MIX-I, Type 1, 16 bar, 120 °C, DHW controller name: IHPT

Termix VMTD-F MIX-I-1 with zone valve, HEX/Pipe insulation

Информация о продукте

Gross weight 19 kg
Net weight 18 kg



Application type DHW, HE direct mixing loop
Connection direction Bottom
Cover material White-lacquered steel sheet, White-lacquered In wall.
Cover option Extra
DCW static pressure [bar] [Min] 1 bar
Delta P primary without heat meter [bar] [Min] 0.39 bar
Depth with cover [mm] 242 mm
Depth without cover [mm] 150 mm
Description Termix VMTD-F MIX-I-1 with zone valve, HEX/Pipe insulation
DH connection size 3/4"
DH connection type G int. Thread
DH pipe size Ø18
DHW circulation Without
DHW connection size 3/4"
DHW connection type G int. Thread
DHW Control type Flow/thermostatic
DHW controller name IHPT
DHW pipe size Ø18
Fitting piece Energy meter return and cold water meter
HE connection size 3/4"
HE connection type G int. Thread
HE pipe size Ø18
Heating control type Thermostatic + delta p controller
Heating controller name RAVK
Heating pump brand Grundfos
Heating pump type UPM3
Height with cover [mm] 800 mm
Height without cover [mm] 780 mm
HEX heating brazing material Copper
HEX heating type Brazed
Insulation material Pipe insulation
Pressure nominal primary [bar] 16 bar
Product group Small Stations
Station size type Type 1
Supply temperature construction [˚C] 120 °C
Supply temperature recommended [˚C] 100 °C
Type Termix VMTD-F MIX-I
Width with cover [mm] 540 mm
Width without cover [mm] 535 mm

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 144B3794

Основные характеристики

Application type
DHW, HE direct mixing loop
Connection direction
Bottom
Cover material
White-lacquered steel sheet, White-lacquered In wall.
Cover option
Extra
DCW static pressure [bar] [Min]
1 bar
Delta P primary without heat meter [bar] [Min]
0.39 bar
Depth with cover [mm]
242 mm
Depth without cover [mm]
150 mm
Description
Termix VMTD-F MIX-I-1 with zone valve, HEX/Pipe insulation
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW circulation
Without
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
IHPT
DHW pipe size
Ø18
Fitting piece
Energy meter return and cold water meter
Gross weight
19 kg
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heating control type
Thermostatic + delta p controller
Heating controller name
RAVK
Heating pump brand
Grundfos
Heating pump type
UPM3
Height with cover [mm]
800 mm
Height without cover [mm]
780 mm
HEX heating brazing material
Copper
HEX heating type
Brazed
Insulation material
Pipe insulation
Net weight
18 kg
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 1
Supply temperature construction [˚C]
120 °C
Supply temperature recommended [˚C]
100 °C
TYPE
Termix VMTD-F MIX-I
Width with cover [mm]
540 mm
Width without cover [mm]
535 mm
