Danfoss 144B3853 - Termix VMTD-F-I, Type 2, 16 bar, 120 °C, DHW controller name: IHPT
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка

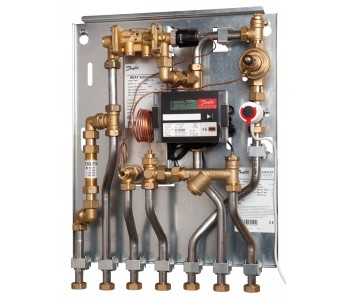

Danfoss 144B3853 - Termix VMTD-F-I, Type 2, 16 bar, 120 °C, DHW controller name: IHPT
Termix VMTD-F-I-2 with zone valve
Информация о продукте
| Gross weight | 18 kg |
| Net weight | 17 kg |
| Gross weight | 18 kg |
| Net weight | 17 kg |
| Application type | DHW, HE direct |
| Connection direction | Bottom |
| Cover material | White-lacquered steel sheet, White-lacquered In wall. |
| Cover option | Extra |
| DCW static pressure [bar] [Min] | 1 bar |
| Delta P primary without heat meter [bar] [Min] | 0.33 bar |
| Depth with cover [mm] | 242 mm |
| Depth without cover [mm] | 150 mm |
| Description | Termix VMTD-F-I-2 with zone valve |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW circulation | Without |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | IHPT |
| DHW pipe size | Ø18 |
| Differential pressure controller | AVPL |
| Fitting piece | Energy meter return |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating control type | Delta p controller + zone valve |
| Heating controller name | Zone valve |
| Height with cover [mm] | 650 mm |
| Height without cover [mm] | 560 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Without |
| Pressure nominal primary [bar] | 16 bar |
| Product group | Small Stations |
| Station size type | Type 2 |
| Supply temperature construction [˚C] | 120 °C |
| Supply temperature recommended [˚C] | 100 °C |
| Type | Termix VMTD-F-I |
| Width with cover [mm] | 540 mm |
| Width without cover [mm] | 440 mm |
| Application type | DHW, HE direct |
| Connection direction | Bottom |
| Cover material | White-lacquered steel sheet, White-lacquered In wall. |
| Cover option | Extra |
| DCW static pressure [bar] [Min] | 1 bar |
| Delta P primary without heat meter [bar] [Min] | 0.33 bar |
| Depth with cover [mm] | 242 mm |
| Depth without cover [mm] | 150 mm |
| Description | Termix VMTD-F-I-2 with zone valve |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW circulation | Without |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | IHPT |
| DHW pipe size | Ø18 |
| Differential pressure controller | AVPL |
| Fitting piece | Energy meter return |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating control type | Delta p controller + zone valve |
| Heating controller name | Zone valve |
| Height with cover [mm] | 650 mm |
| Height without cover [mm] | 560 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Without |
| Pressure nominal primary [bar] | 16 bar |
| Product group | Small Stations |
| Station size type | Type 2 |
| Supply temperature construction [˚C] | 120 °C |
| Supply temperature recommended [˚C] | 100 °C |
| Type | Termix VMTD-F-I |
| Width with cover [mm] | 540 mm |
| Width without cover [mm] | 440 mm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 144B3853
Основные характеристики
- Application type
- DHW, HE direct
- Connection direction
- Bottom
- Cover material
- White-lacquered steel sheet, White-lacquered In wall.
- Cover option
- Extra
- DCW static pressure [bar] [Min]
- 1 bar
- Delta P primary without heat meter [bar] [Min]
- 0.33 bar
- Depth with cover [mm]
- 242 mm
- Depth without cover [mm]
- 150 mm
- Description
- Termix VMTD-F-I-2 with zone valve
- DH connection size
- 3/4"
- DH connection type
- G int. Thread
- DH pipe size
- Ø18
- DHW circulation
- Without
- DHW connection size
- 3/4"
- DHW connection type
- G int. Thread
- DHW Control type
- Flow/thermostatic
- DHW controller name
- IHPT
- DHW pipe size
- Ø18
- Differential pressure controller
- AVPL
- Fitting piece
- Energy meter return
- Gross weight
- 18 kg
- HE connection size
- 3/4"
- HE connection type
- G int. Thread
- HE pipe size
- Ø18
- Heating control type
- Delta p controller + zone valve
- Heating controller name
- Zone valve
- Height with cover [mm]
- 650 mm
- Height without cover [mm]
- 560 mm
- HEX heating brazing material
- Copper
- HEX heating type
- Brazed
- Insulation material
- Without
- Net weight
- 17 kg
- Pressure nominal primary [bar]
- 16 bar
- Product group
- Small Stations
- Station size type
- Type 2
- Supply temperature construction [˚C]
- 120 °C
- Supply temperature recommended [˚C]
- 100 °C
- TYPE
- Termix VMTD-F-I
- Width with cover [mm]
- 540 mm
- Width without cover [mm]
- 440 mm
