Артикул: 145B0003

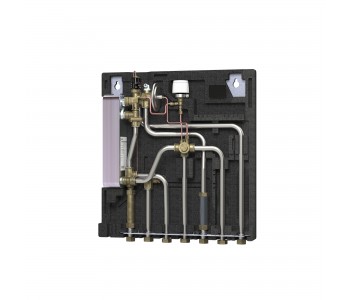

Danfoss 145B0003 - EvoFlat FSS, 10 bar, 95 °C, DHW controller name: TPC-M
Доступно к заказу
Цена по запросу
И выбери подходящего.
Danfoss 145B0003 - EvoFlat FSS, 10 bar, 95 °C, DHW controller name: TPC-M
EvoFlat FSS 2, w/bypass, w/1 CW meter, w/o EPP front
Информация о продукте
Gross weight | 10.8 kg |
Net weight | 9.6 kg |
Gross weight | 10.8 kg |
Net weight | 9.6 kg |
0-series required | No |
Application type | DHW, HE direct |
BOM Q approved | 2.0151028000000000E+07 |
Connection direction | Bottom |
Cover material | White-lacquered In wall |
Cover option | Extra |
DCW static pressure [bar] [Min] | 2 bar |
Depth with cover [mm] | 153 mm |
Depth without cover [mm] | 110 mm |
Description | EvoFlat FSS 2, w/bypass, w/1 CW meter, w/o EPP front |
DH connection size | 3/4" |
DH connection type | G int. Thread |
DH pipe size | Ø18 |
DHW capacity [kW] [Max] | 55 kW |
DHW capacity [kW] [Min] | 37 kW |
DHW circulation | Without |
DHW connection size | 3/4" |
DHW connection type | G int. Thread |
DHW Control type | Flow/thermostatic |
DHW controller name | TPC-M |
DHW HEX type | XB06H-1 40 |
DHW pipe size | Ø18 |
Differential pressure controller | Integrated |
Fitting piece | Energy meter return and cold water meter |
HE connection size | 3/4" |
HE connection type | G int. Thread |
HE pipe size | Ø18 |
Heat exchanger test pressure [bar] | 38 bar |
Heating capacity [kW] [Max] | 15 kW |
Heating capacity [kW] [Min] | 10 kW |
Heating control type | Delta p controller |
Heating controller name | TPC-M |
Height with cover [mm] | 590 mm |
Height without cover [mm] | 590 mm |
HEX heating alloy | AISI 316 |
HEX heating brazing material | Copper |
HEX heating type | Brazed |
Insulation material | Without |
Material Description (Short Te | EvoFlat FSS 2 TPC-M |
Number of households [Max] | 2 |
Number of households [Min] | 1 |
Operating temp max. [°C] | 95 °C |
Package depth [mm] | 600 mm |
Package height [mm] | 160 mm |
Package width [mm] | 800 mm |
Packing format | Single pack |
Pressure nominal primary [bar] | 10 bar |
Pressure nominal secondary [bar] | 10 bar |
Pri side opr press max[bar] | 10 bar |
Product group | Small Stations |
Quantity per packing format | 1 pc |
Redan APP Diagram | No |
Remarks | Insulated Flatstations |
Sec side opr press max[bar] | 10 bar |
Supply temperature construction [˚C] | 95 °C |
Total volume max. [l] | 5 L |
Type | EvoFlat FSS |
Width with cover [mm] | 545 mm |
Width without cover [mm] | 545 mm |
0-series required | No |
Application type | DHW, HE direct |
BOM Q approved | 2.0151028000000000E+07 |
Connection direction | Bottom |
Cover material | White-lacquered In wall |
Cover option | Extra |
DCW static pressure [bar] [Min] | 2 bar |
Depth with cover [mm] | 153 mm |
Depth without cover [mm] | 110 mm |
Description | EvoFlat FSS 2, w/bypass, w/1 CW meter, w/o EPP front |
DH connection size | 3/4" |
DH connection type | G int. Thread |
DH pipe size | Ø18 |
DHW capacity [kW] [Max] | 55 kW |
DHW capacity [kW] [Min] | 37 kW |
DHW circulation | Without |
DHW connection size | 3/4" |
DHW connection type | G int. Thread |
DHW Control type | Flow/thermostatic |
DHW controller name | TPC-M |
DHW HEX type | XB06H-1 40 |
DHW pipe size | Ø18 |
Differential pressure controller | Integrated |
Fitting piece | Energy meter return and cold water meter |
HE connection size | 3/4" |
HE connection type | G int. Thread |
HE pipe size | Ø18 |
Heat exchanger test pressure [bar] | 38 bar |
Heating capacity [kW] [Max] | 15 kW |
Heating capacity [kW] [Min] | 10 kW |
Heating control type | Delta p controller |
Heating controller name | TPC-M |
Height with cover [mm] | 590 mm |
Height without cover [mm] | 590 mm |
HEX heating alloy | AISI 316 |
HEX heating brazing material | Copper |
HEX heating type | Brazed |
Insulation material | Without |
Material Description (Short Te | EvoFlat FSS 2 TPC-M |
Number of households [Max] | 2 |
Number of households [Min] | 1 |
Operating temp max. [°C] | 95 °C |
Package depth [mm] | 600 mm |
Package height [mm] | 160 mm |
Package width [mm] | 800 mm |
Packing format | Single pack |
Pressure nominal primary [bar] | 10 bar |
Pressure nominal secondary [bar] | 10 bar |
Pri side opr press max[bar] | 10 bar |
Product group | Small Stations |
Quantity per packing format | 1 pc |
Redan APP Diagram | No |
Remarks | Insulated Flatstations |
Sec side opr press max[bar] | 10 bar |
Supply temperature construction [˚C] | 95 °C |
Total volume max. [l] | 5 L |
Type | EvoFlat FSS |
Width with cover [mm] | 545 mm |
Width without cover [mm] | 545 mm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
- 0-series required
- No
- Application type
- DHW, HE direct
- BOM Q approved
- 2.0151028000000000E+07
- Connection direction
- Bottom
- Cover material
- White-lacquered In wall
- Cover option
- Extra
- DCW static pressure [bar] [Min]
- 2 bar
- Depth with cover [mm]
- 153 mm
- Depth without cover [mm]
- 110 mm
- Description
- EvoFlat FSS 2, w/bypass, w/1 CW meter, w/o EPP front
- DH connection size
- 3/4"
- DH connection type
- G int. Thread
- DH pipe size
- Ø18
- DHW capacity [kW] [Max]
- 55 kW
- DHW capacity [kW] [Min]
- 37 kW
- DHW circulation
- Without
- DHW connection size
- 3/4"
- DHW connection type
- G int. Thread
- DHW Control type
- Flow/thermostatic
- DHW controller name
- TPC-M
- DHW HEX type
- XB06H-1 40
- DHW pipe size
- Ø18
- Differential pressure controller
- Integrated
- Fitting piece
- Energy meter return and cold water meter
- Gross weight
- 10.8 kg
- HE connection size
- 3/4"
- HE connection type
- G int. Thread
- HE pipe size
- Ø18
- Heat exchanger test pressure [bar]
- 38 bar
- Heating capacity [kW] [Max]
- 15 kW
- Heating capacity [kW] [Min]
- 10 kW
- Heating control type
- Delta p controller
- Heating controller name
- TPC-M
- Height with cover [mm]
- 590 mm
- Height without cover [mm]
- 590 mm
- HEX heating alloy
- AISI 316
- HEX heating brazing material
- Copper
- HEX heating type
- Brazed
- Insulation material
- Without
- Material Description (Short Te
- EvoFlat FSS 2 TPC-M
- Net weight
- 9.6 kg
- Number of households [Max]
- 2
- Number of households [Min]
- 1
- Operating temp max. [°C]
- 95 °C
- Package depth [mm]
- 600 mm
- Package height [mm]
- 160 mm
- Package width [mm]
- 800 mm
- Packing format
- Single pack
- Pressure nominal primary [bar]
- 10 bar
- Pressure nominal secondary [bar]
- 10 bar
- Pri side opr press max[bar]
- 10 bar
- Product group
- Small Stations
- Quantity per packing format
- 1 pc
- Redan APP Diagram
- No
- Remarks
- Insulated Flatstations
- Sec side opr press max[bar]
- 10 bar
- Supply temperature construction [˚C]
- 95 °C
- Total volume max. [l]
- 5 L
- TYPE
- EvoFlat FSS
- Width with cover [mm]
- 545 mm
- Width without cover [mm]
- 545 mm
